Power Box

Odoo image and text block

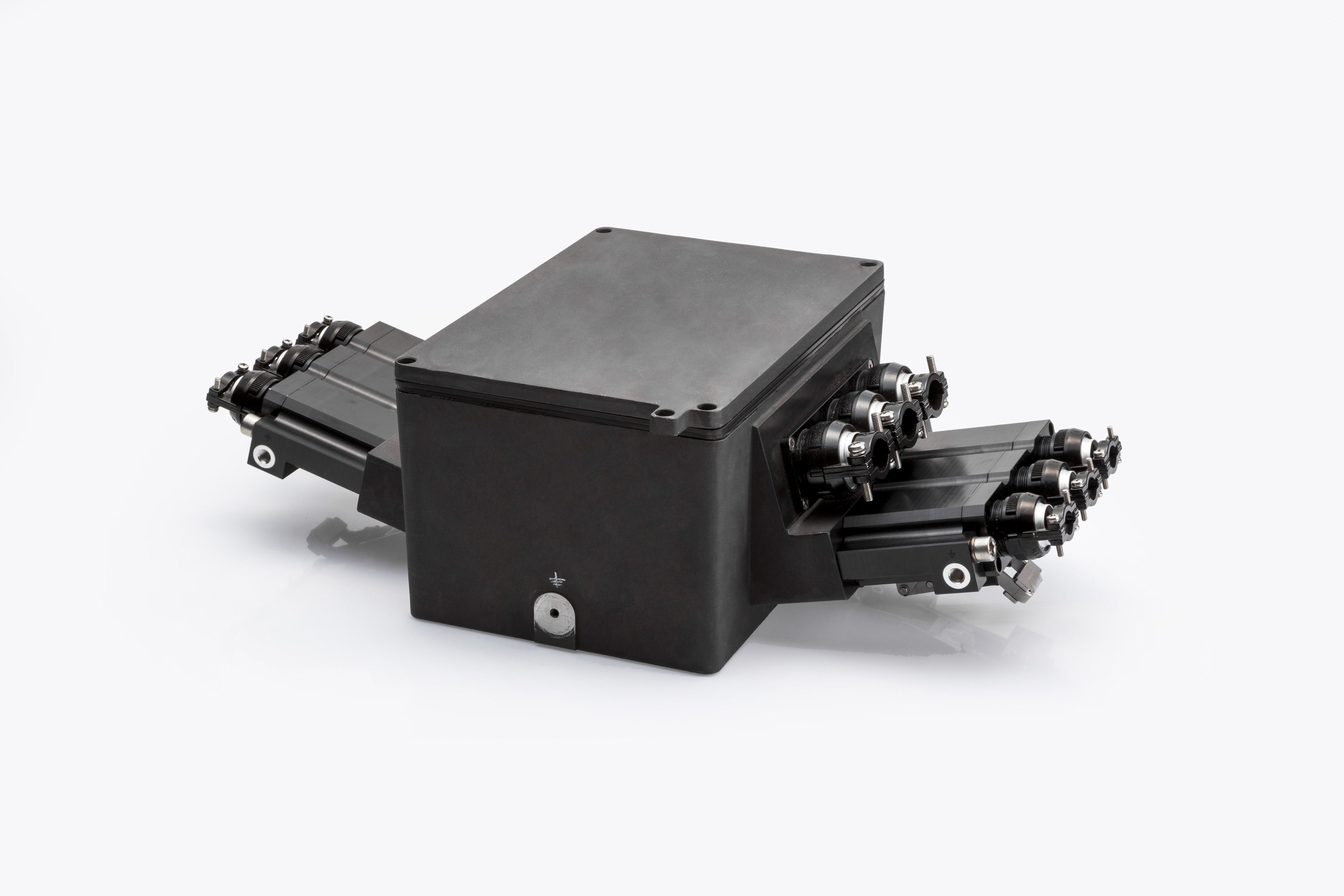

CP Power Box has been developed for motor connection in railway application:

Features:

  • Feeding cable section: 185sq.mm

  • Internal insulating rubber coating

  • Protected internal feeding bars

  • Mating system cable connectors composed by: alignment guides for assisted coupling, single mechanical locking latch, two secure lock screws

  • Crimp contacts 95 sq.mm

  • Earth contact

  • Contacts retention: through elastic ring

  • Single louver band contactation contacts

  • Cable strain relief: C type cable clamp MS 3057

  • Rated voltage: 1.500V

  • Rated current: entry – 500A exit - 250A

  • Shell material: black anodized Aluminum alloy
